Tri-row culindrical roller combined slewing bearing (internal gear type)

Back

Request a Quote Consultation

Model

HIU25/500

HIU25/500Y

HIU25/500Y1

HIU25/560

HIU25/560Y

HIU25/630

HIU25/630Y

HIU25/710

HIU25/710Y

HIU30/800Y

HIU30/800

HIU20/815

HIU30/900

HIU30/900Y

HIU30/1000

HIU30/1000Y

HIU30/1120

HIU30/1120Y

HIU40/1250Y

HIU40/1250

HIU20/1250

HIU20/1270

HIU40/1400Y

HIU25/1390

HIU40/1400

HIU20/1400

HIU20/1490

HIU40/1600Y

HIU40/1600

HIU20/1600

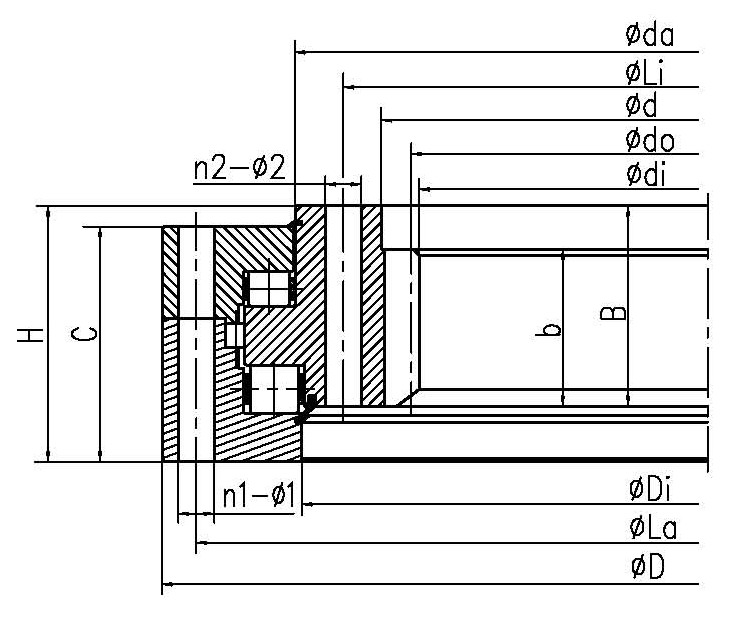

INA Model	LYC Model	TG Model	Boundary dimensions (mm)				Bolt hole diameter (mm)						Structure dimensions (mm)								Gear Parameters (mm)				Basic load ratinge Coa (KN)	Weight (KG)
INA Model	LYC Model	TG Model	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	Basic load ratinge Coa (KN)	Weight (KG)
YI 25 0500N			260	652		148	604	370	16	16	33	33			102	36	112	134	456	478	10	28	280		532	250
	133.25.500.**		335	634		148	598	402	24	24	18	18		366	80	10	116	138	526	537	5	68	340	+0.5	2750	224
	134.25.500.**		336	634		148	598	402	24	24	18	18		366	80	10	116	138	463	474	6	57	342	+0.5	2750	224
	133.25.560.**		395	694		148	658	462	24	24	18	18		426	80	10	116	138	586	597	5	80	400	+0.5	3080	240
	134.25.560.**		396	694		148	658	462	24	24	18	18		426	80	10	116	138	523	534	6	67	402	+0.5	3080	240
	133.25.630.**		456	764		148	728	532	28	28	18	18		496	80	10	116	138	656	667	6	77	462	+0.5	3450	270
	134.25.630.**		456	764		148	728	532	28	28	18	18		496	60	10	116	138	593	604	8	58	464	+0.5	3450	270
	133.25.710.**		534	844		148	808	612	28	28	18	18		576	80	10	116	138	736	747	6	90	540	+0.5	3880	300
	134.25.710.**		536	844		148	808	612	28	28	18	18		576	80	10	116	138	673	684	8	68	544	+0.5	3880	300
	134.32.800.**		590	964		182	920	680	36	36	22	22		636	120	10	142	172	759	770	10	60	600	+0.5	5490	500
	133.32.800.**		592	964		182	920	680	36	36	22	22		636	120	10	142	172	830	841	8	75	600	+0.5	5490	500
YI 20 0815N			608	954		120	905	705	28	28	26	26			80	30	90	106	781	792	8	78	624		833	275
	133.32.900.**		688	1064		182	1020	780	36	36	22	22		736	120	10	142	172	930	941	8	87	696	+0.5	6190	600
	134.32.900.**		690	1064		182	1020	780	36	36	22	22		736	120	10	142	172	859	870	10	70	700	+0.5	6190	600
	133.32.1000.**		780	1164		182	1120	880	40	40	22	22		836	120	10	142	172	1030	1041	10	79	790	+0.5	6890	680
	134.32.1000.**		780	1164		182	1120	880	40	40	22	22		836	120	10	142	172	959	970	12	66	792	+0.5	6890	680
	133.32.1120.**		900	1284		182	1240	1000	40	40	22	22		956	120	10	142	172	1150	1161	10	91	910	+0.5	7680	820
	134.32.1120.**		900	1284		182	1240	1000	40	40	22	22		956	120	10	142	172	1079	1090	12	76	912	+0.5	7680	820
	134.40.1250.**		980	1445		220	1393	1107	45	45	26	26		1055	150	10	170	210	1200	1210	14	71	994	+0.5	11100	1200
	133.40.1250.**		984	1445		220	1393	1107	45	45	26	26		1055	150	10	170	210	1290	1300	12	83	996	+0.5	11100	1200
			1032	1397		132	1345	1145	36	36	26	26			106	9	106	123	1219	1218	12	87	1044	-0.5	7350	539
YI 20 1270N			1064	1408		120	1360	1160	44	44	26	26			80	30	90	106	1236	1247	8	135	1080		1278	430
	134.40.1400.**		1134	1595		220	1543	1257	45	45	26	26		1205	150	10	170	210	1350	1360	14	80	1120	+0.5	12400	1300
YI 25 1390N			1140	1554		148	1494	1260	32	32	33	33			102	36	112	134	1346	1368	10	116	1160		1402	720
	133.40.1400.**		1140	1595		220	1543	1257	45	45	26	26		1205	150	10	170	210	1440	1450	12	96	1152	+0.5	12400	1300
			1162	1547		132	1495	1295	36	36	26	26			106	9	106	123	1369	1368	14	84	1176	-0.5	8200	630
YI 20 1490N			1272	1628		120	1580	1380	50	50	26	26			80	30	90	106	1456	1467	12	108	1296		1493	505
	134.40.1600.**		1328	1795		220	1743	1457	48	48	26	26		1405	150	10	170	210	1550	1560	16	84	1344	+0.5	14200	1520
	133.40.1600.**		1330	1795		220	1743	1457	48	48	26	26		1405	150	10	170	210	1640	1650	14	96	1344	+0.5	14200	1520
			1372	1747		132	1695	1495	40	40	26	26			106	9	106	123	1569	1568	14	99	1386	-0.5	9400	705
